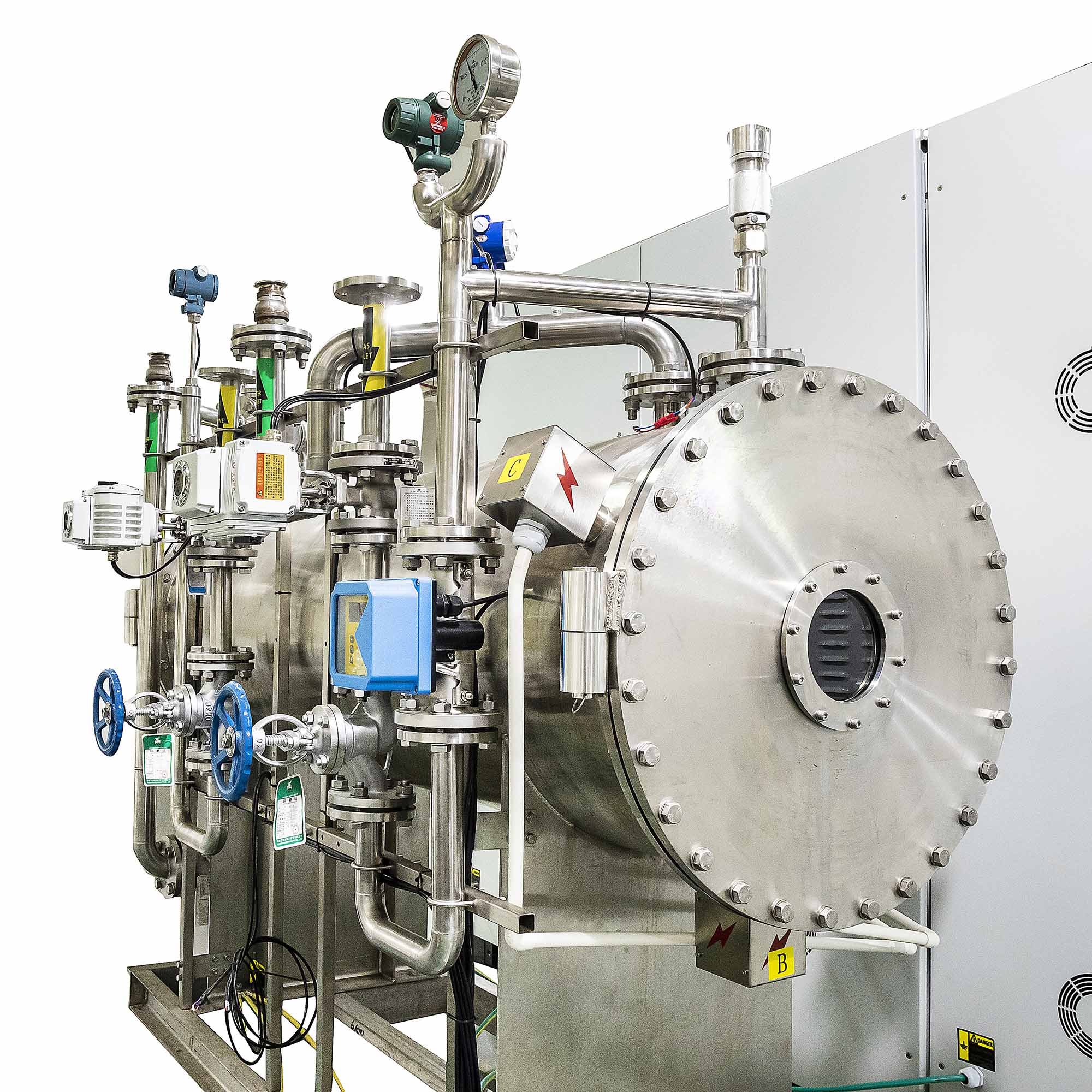

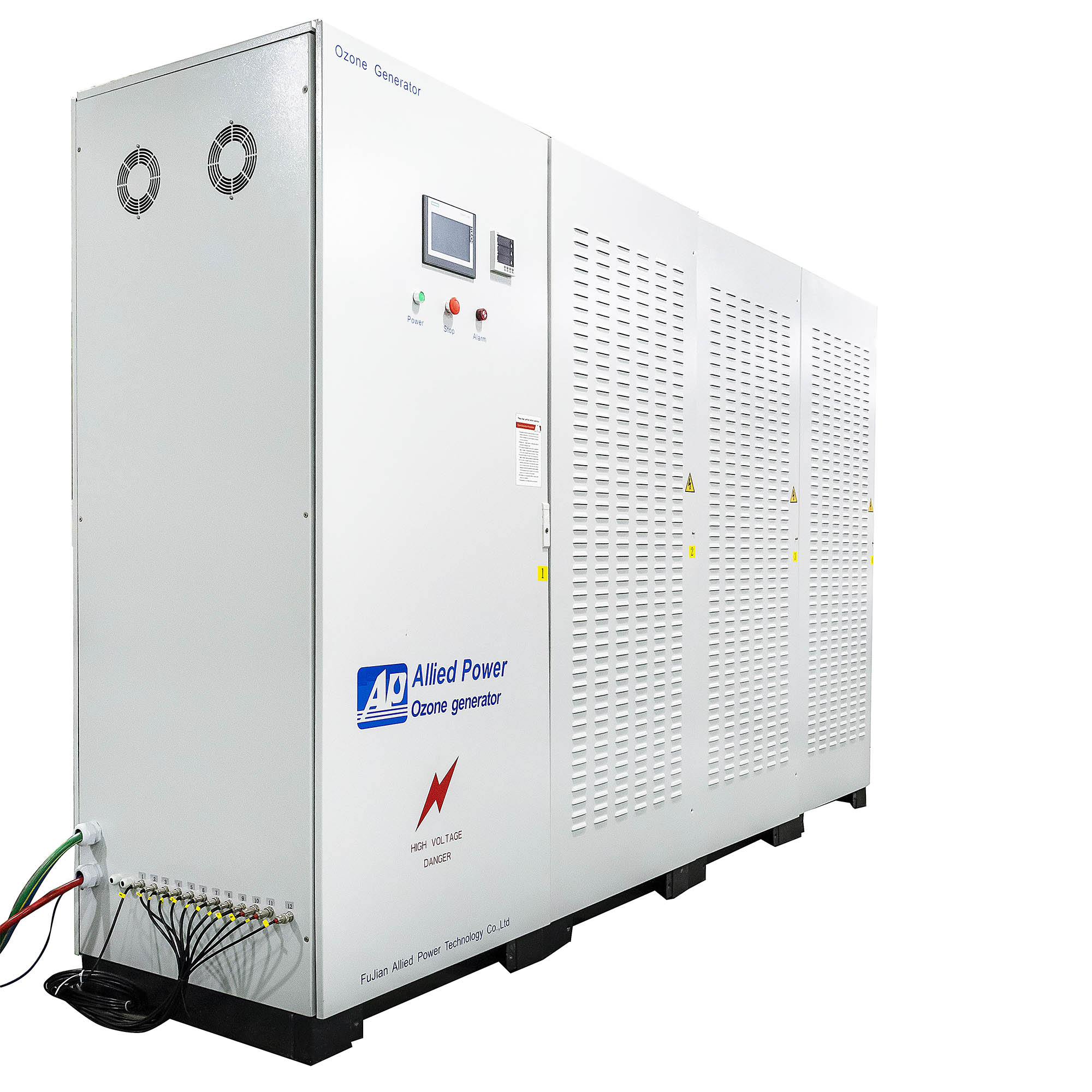

15Kg o3 generator ozon generator products for ozone wastewater treatment

PARAMETERS

HW-O-15K Ozone generator system Specification
Ozone Output:  15Kg/hr
Ozone Concentration: 150mg/ L
Power Supply: 380V / 3PH / 50-60Hz
Running Power rate: 120KW
Cooling Mode:  Cooling Water
Flow of Cooling Water: 30m3/h
Cooling Water Temp.: 0~20℃
Discharge Mode:  High Frequency and High voltage
Material of ozone chamber: Stainless Steel 304
Material of electrode:  Stainless Steel 316
Material of dieletric:  Quartz Glass Tubes
Relative Humidity:  ≤60%
 Air Dew Point: ≦-45℃
Oxygen Consumption:  125m3/h
Working pressure 0.08-0.1Mpa
Installation Environment:  Indoor
Running Environment Temp.:  0-45℃
Storage Environment Temp.: 15℃~40℃
O2 inlet/O3 outlet pipe DN50
Water inlet/outlet pipe DN50
Size:  3680*810*2160mm;                                  2070*1250*1910mm
Weight:  2.3T

Contact Now

Product Description

15Kg o3 generator ozon generator products for ozone wastewater treatment
Both ozone capacity and ozone concentration can be adjusted from 10%-100%. We accept OEM and ODM orders.




AUTOMATICALLY OZONE GENERATOR FUNCTIONS INTRODUCTION:

1. Safety design: Over current, over voltage, cooling water over temperature, cabinet over temperature, less water flow alarms, ozone leakage alarm, if any alarm happened, ozone generator will stop work.
2. Show water temperature, cabinet temperature, ozone temperature , ozone pressure, ozone flow, ozone concentration on HMI, real time inspection ozone generator working staue.
3. Screen saver 4. Touch screen valve setting, automatically to control oxygen inlet and ozone outlet valve open to regulate ozone production automatically. 5. Setting alarms max working conditions.
6. Ozone production can be regulated from 10%-100%

7. English Language

 8. Local/ remote control

 9. Show ozone production

Manufacturing Technique




Our Applications




Our Certificates


Our Company introduction


Allied Power produce ozone generators from 10g/h to 50Kg/h.
Fujian Allied Power EnTech Co.,Ltd was founded in 2004.Allied Power developed the most efficient and reliable ozone generator with ozone production from 10g/h to 50kg/h.We adopt double micro-gaps dielectric barrier corona discharge (DBCD) technology,quartz glass tubes and SS316L tubes as dielectric medium. High dielectric constant could ensure the ozone generator works stably and produce high concentration ozone.The highest ozone concentration of our ozone generator could reach 230mg/l.
