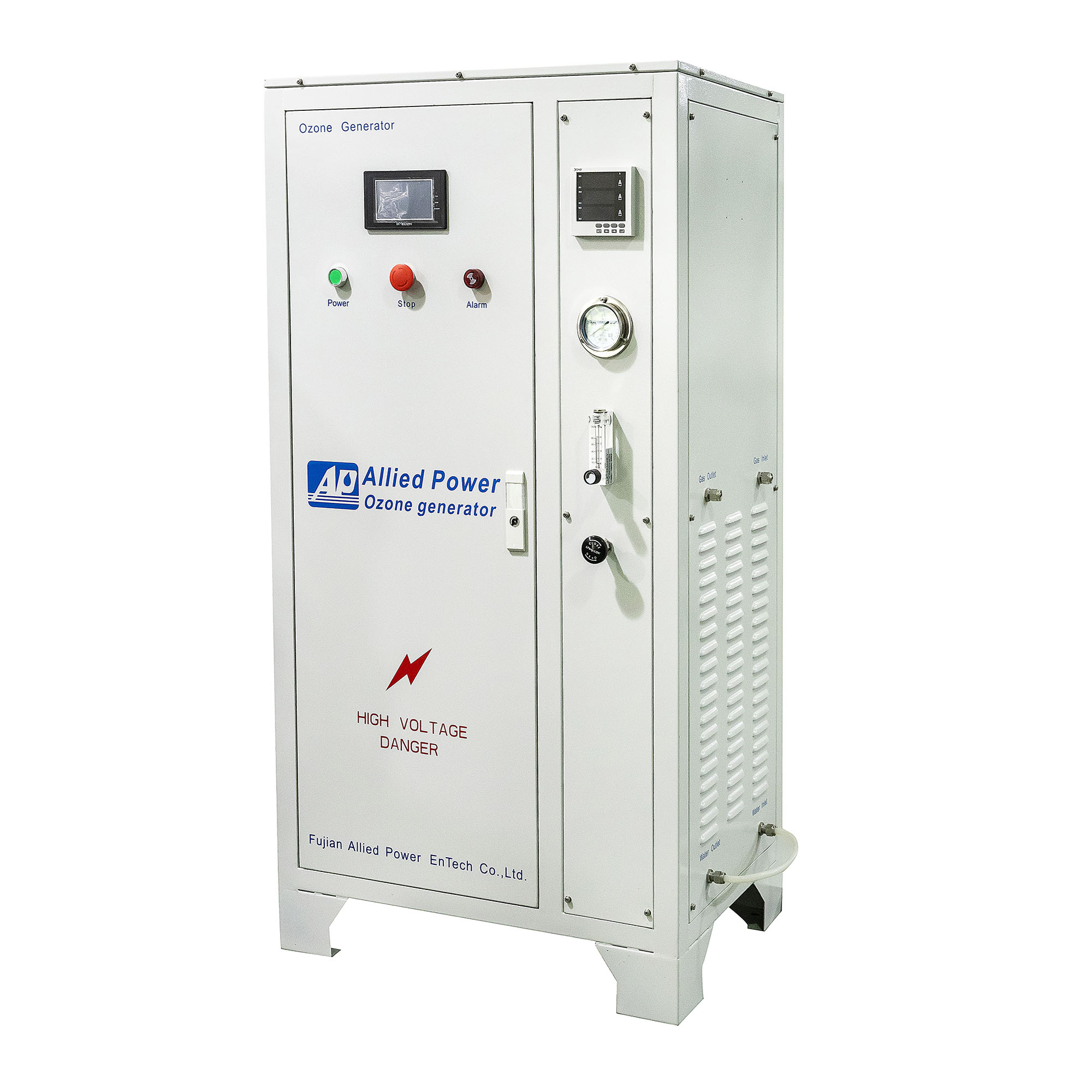

200g catalytic ozonation machine for water treatment equipment

PARAMETERS

HW-O-200 Ozone generator system Specification
Ozone Output:		200g/hr
Ozone Concentration:		120mg/ L
Power Supply:		380V / 3PH / 50Hz
Running Power rate:		1.65KW
Cooling Mode:		Cooling Water
Flow of Cooling Water:		0.4m3/h
Cooling Water Temp.:		0～20℃
Discharge Mode:		High Frequency and High voltage
Material of ozone chamber:		Stainless Steel 304
Material of electrode:		Stainless Steel 316
Material of dieletric:		Quartz Glass Tubes
Relative Humidity:		≤60%
Air Dew Point：		≦-45℃
Oxygen Consumption:		27.78L/min
Working pressure		0.08-0.1Mpa
Installation Environment:		Indoor
Running Environment Temp.:		0-45℃
Storage Environment Temp.:		15℃～40℃

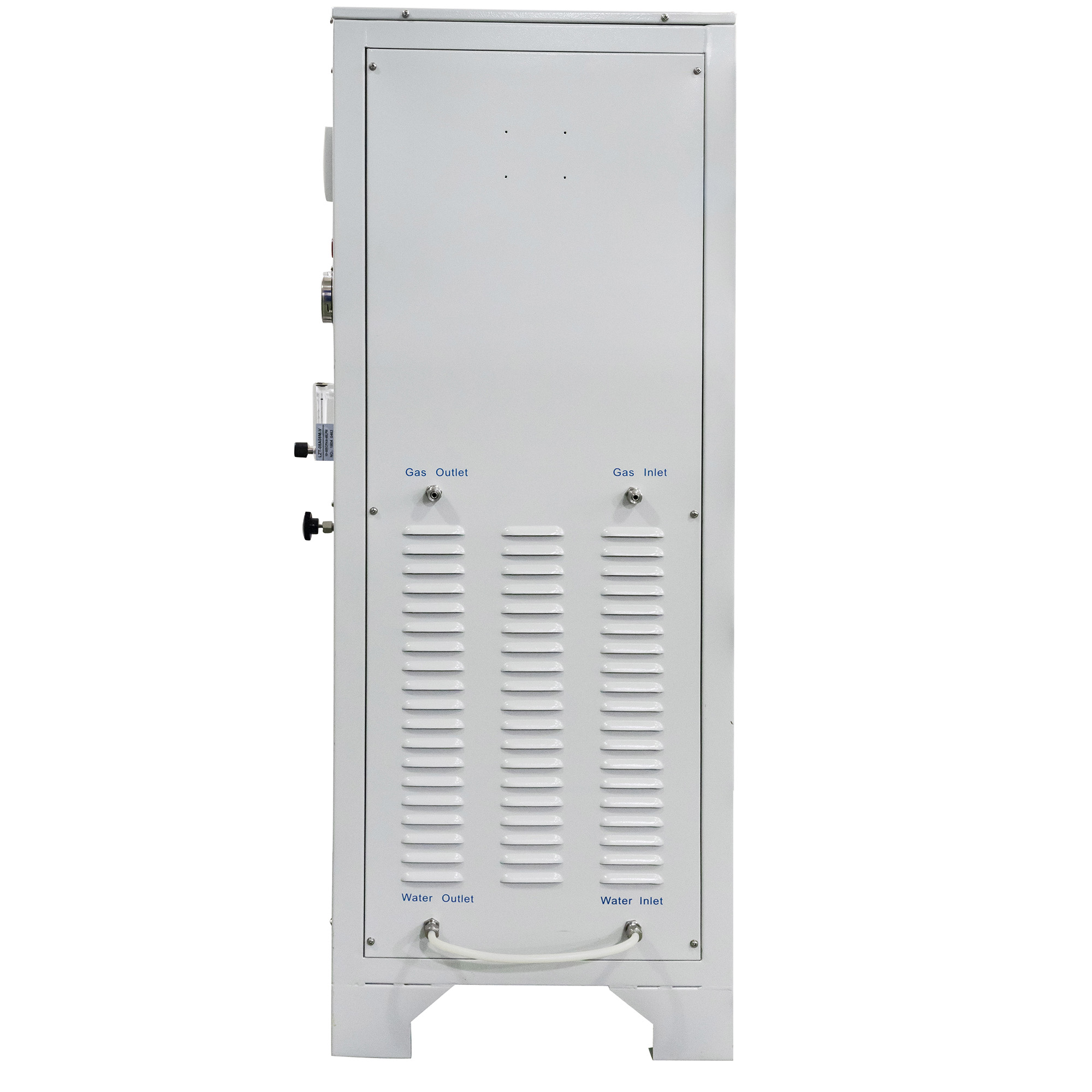

O2 inlet/O3 outlet pipe		Φ10
Water inlet/outlet pipe		Φ10
Size:		8206201560mm
Weight:		180Kg

Contact Now

Product Description

200g catalytic ozonation machine for water treatment equipment

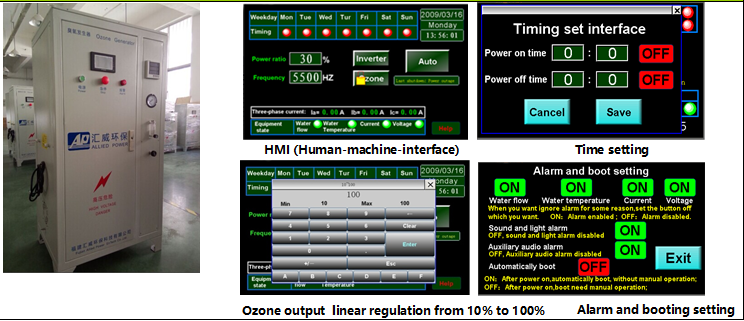

Both ozone capacity and ozone concentration can be adjusted from 10%-100%. We accept OEM and ODM orders.

Manufacturing Technique

Our Applications

Our Certificates

Our Company introduction

Allied Power produce ozone generators from 10g/h to 50Kg/h.

Fujian Allied Power EnTech Co.,Ltd was founded in 2004.Allied Power developed the most efficient and reliable ozone generator with ozone production from 10g/h to 50kg/h.We adopt double micro-gaps dielectric barrier corona discharge (DBCD) technology,quartz glass tubes and SS316L tubes as dielectric medium. High dielectric constant could ensure the ozone generator works stably and produce high concentration ozone.The highest ozone concentration of our ozone generator could reach 230mg/l.
