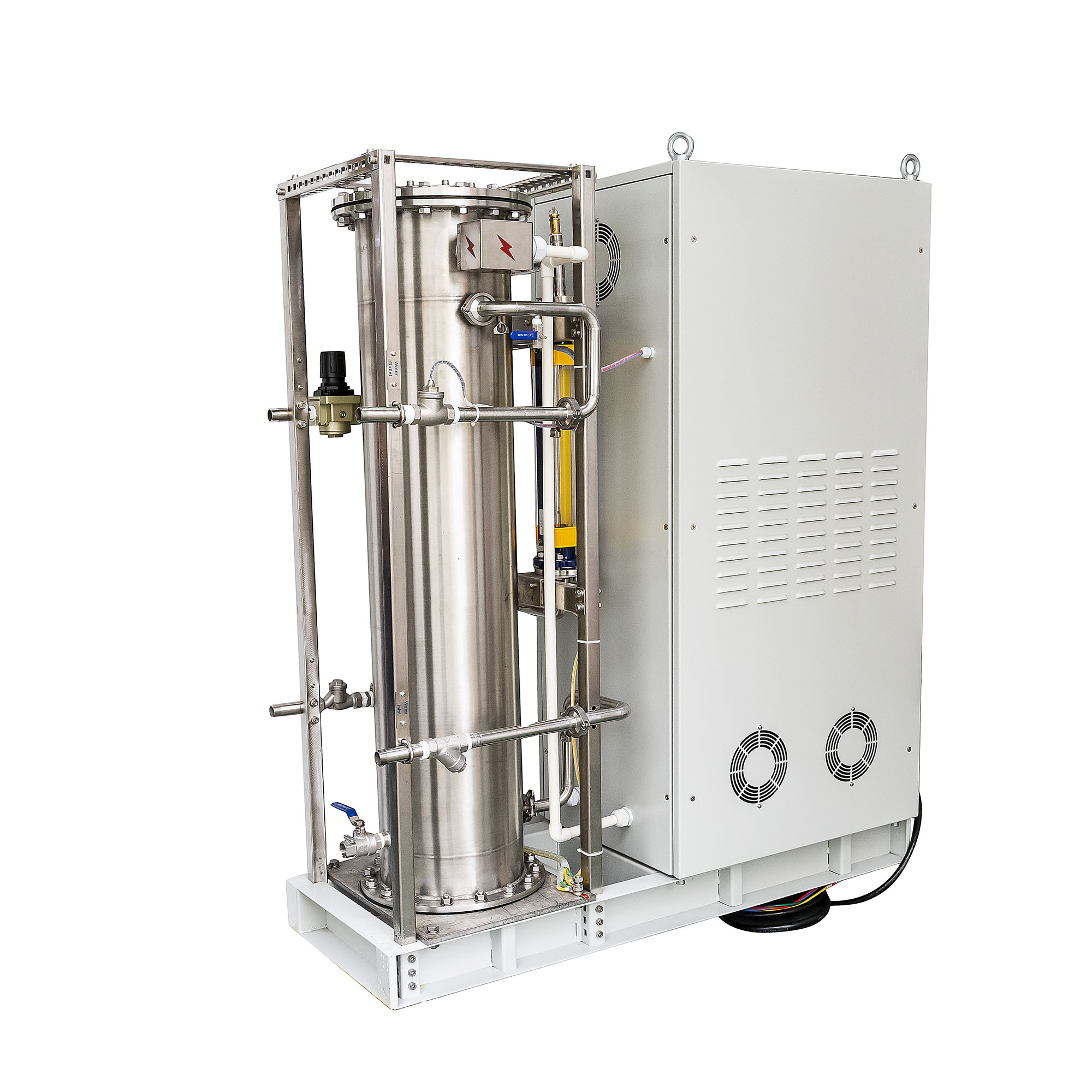

700g water ozonation disinfection of wastewater treatment

PARAMETERS

HW-O-700 Ozone generator system Specification
Ozone Output:		700g/hr
Ozone Concentration:		120mg/ L
Power Supply:		3PH / 380V / 50-60Hz
Running Power rate:		5.8KW
Cooling Mode:		Cooling Water
Flow of Cooling Water:		1.4m3/h
Cooling Water Temp.:		0～20℃
Discharge Mode:		High Frequency and High voltage
Material of ozone chamber:		Stainless Steel 304
Material of electrode:		Stainless Steel 316
Material of dieletric:		Quartz Glass Tubes
Relative Humidity:		≤60%
Air Dew Point：		≦-45℃
Oxygen Consumption:		5.83m3/h
Working pressure		0.08-0.1Mpa
Installation Environment:		Indoor
Running Environment Temp.:		0-45℃
Storage Environment Temp.:		15℃～40℃
O2 inlet/O3 outlet pipe		DN15
Water inlet/outlet pipe		DN15
Size:		120045011450mm
Weight:		350Kg

Contact Now

Product Description

700g water ozonation disinfection of wastewater treatment
Both ozone capacity and ozone concentration can be adjusted from 10%-100%. We accept OEM and ODM orders.

Manufacturing Technique

Our Applications

Our Certificates

Our Company introduction

Allied Power produce ozone generators from 10g/h to 50Kg/h.

Fujian Allied Power EnTech Co.,Ltd was founded in 2004.Allied Power developed the most efficient and reliable ozone generator with ozone production from 10g/h to 50kg/h.We adopt double micro-gaps dielectric barrier corona discharge (DBCD) technology,quartz glass tubes and SS316L tubes as dielectric medium. High dielectric constant could ensure the ozone generator works stably and produce high concentration ozone.The highest ozone concentration of our ozone generator could reach 230mg/l.
